Garmin AXIS
Flight Display Installation

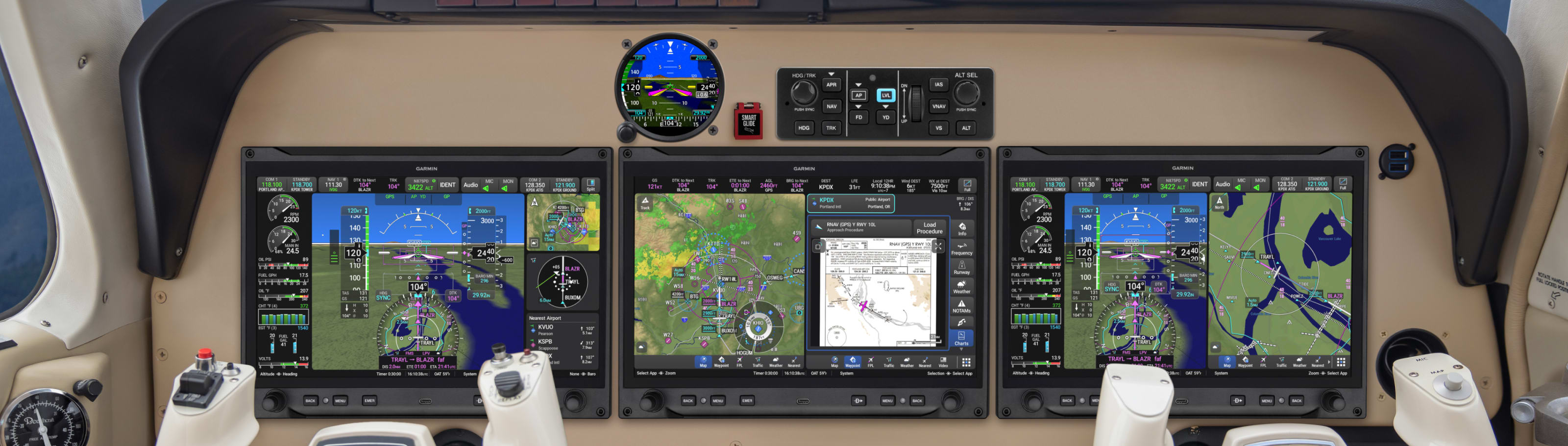

The next generation of Garmin avionics is here. AXIS combines flight display, IFR GPS, NAV/COMM radio, and audio panel into a single integrated unit — and we’re installing them now. Certified, experimental, and LSA aircraft. FAA Certified Repair Station, Sebastian, Florida.
Everything In One Display
Garmin AXIS replaces separate flight displays, GPS navigators, NAV/COMM radios, and audio panels with a single integrated unit. Fewer boxes, fewer wires, cleaner panel, lower installation cost.
The Garmin AXIS represents a fundamental shift in avionics architecture. Instead of installing separate flight displays, GPS navigators, NAV/COMM radios, and audio panels — each with its own wiring harness, mounting tray, and antenna connections — AXIS puts all of that capability into a single touchscreen display with physical controls.
For aircraft owners, this means a dramatically simpler panel with fewer components to maintain. For shops like ours, it means a cleaner installation with fewer potential failure points. The result is a modern glass cockpit that’s more reliable, easier to troubleshoot, and less expensive to install than a comparable stack of discrete boxes.
AXIS is available for hundreds of certified piston singles and twins — including the Cessna, Piper, Beechcraft, and Mooney models we work on every day — as well as experimental and LSA aircraft under the new MOSAIC rules. If you’re already flying with G3X Touch, the upgrade path is exceptionally clean: same panel cutout, same mounting holes, same sensors.

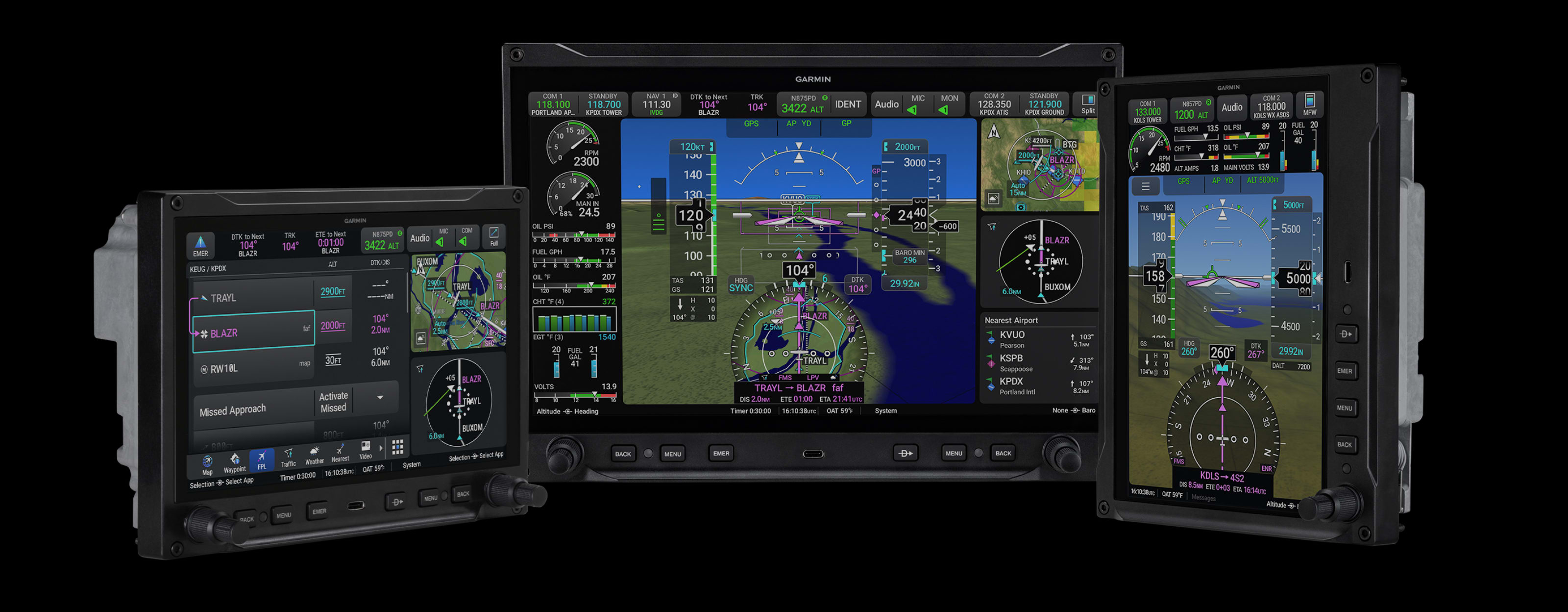

Display Configurations
Three sizes to fit any panel layout. Each configurable as PFD, MFD, or engine indication system.
11.6" Landscape
The flagship AXIS display. Full-size touchscreen with physical controls for primary flight instrument duties. Ideal as a standalone PFD/MFD or paired with a second unit for a complete dual-display glass cockpit.
- Integrated IFR GPS navigator
- Built-in 10W NAV/COMM radio
- 4-place intercom & audio panel
- Full-screen or split-screen modes
- PFD, MFD, or EIS configuration
- HDMI video input for cameras
8" Portrait
Compact portrait display for tighter panel installations. Perfect as a dedicated PFD or engine instrument in multi-display setups, or as a standalone solution in smaller cockpits.
- Same integrated capabilities
- Fits narrower panel cutouts
- Ideal for dedicated PFD or EIS role
- Pairs with 11.6" for mixed layouts
8" Landscape
Compact landscape format for flexible panel configurations. Same integrated avionics in a smaller footprint, ideal for panels where a portrait orientation doesn’t fit the existing layout.
- Same integrated capabilities
- Landscape orientation flexibility
- Works as standalone or companion
- Versatile panel placement options
Built-In Capabilities
Every AXIS display integrates capabilities that traditionally required four or more separate boxes.
IFR GPS Navigator
TSO-certified IFR GPS built directly into the display. Full approach capability with LPV precision approaches down to 200 feet. No separate GTN box needed.
NAV/COMM Radio
Integrated 10-watt NAV/COMM transceiver with 8.33 kHz channel spacing and standby frequency monitoring. Dual-COMM switching when two AXIS displays are installed.
Audio Panel & Intercom
4-place intercom with COMM playback, Bluetooth audio for music and phone calls, and pilot isolate mode. Replaces a dedicated audio panel entirely.
Smart Glide & Emergency
Dedicated emergency button activates Smart Glide (nearest airport guidance during engine failure), level-wings mode, or a 180-degree escape turn. Built-in, always ready.
Synthetic Vision & SafeTaxi
Enhanced Synthetic Vision Technology with pathway rectangles for flight path visualization. 3D SafeTaxi for runway and taxiway awareness. Runway Occupancy Awareness and optional SurfaceWatch.
Connectivity
Built-in Wi-Fi and Bluetooth for Garmin Pilot and ForeFlight connectivity. USB-C port for data transfer and device charging. HDMI video input for backup cameras or other monitoring.
AXIS Equipment Pricing
Equipment costs from Garmin. Installation labor varies by aircraft type and existing panel configuration — contact us for a complete quote.
| Configuration | Equipment Cost | Notes |
|---|---|---|
| Experimental VFR System | ~$8,000 | Display + air data/attitude sensors |
| Single 11.6" Certified | ~$28,000 | IFR GPS + NAV/COMM + audio panel integrated |
| Dual 11.6" Certified | ~$51,800 | Dual IFR GPS + dual NAV/COMM + full redundancy |
| G3X Touch → AXIS (Experimental) | ~$6,000 | Display-only upgrade, existing sensors/LRUs retained |
| G3X Touch → AXIS (Certified) | ~$10,000 | Display-only upgrade, same panel cutout & mounting |
Prices shown are approximate equipment costs from Garmin as of July 2026. Installation labor, additional sensors, antennas, and any required airframe modifications are quoted separately based on your specific aircraft.
Already Flying G3X Touch?
The AXIS upgrade path from G3X Touch is one of the cleanest transitions Garmin has ever offered. The AXIS display drops into the same panel cutout and uses the same mounting holes as your existing G3X Touch installation.
Your existing sensors, LRUs, and wiring stay in place. The upgrade requires approximately 8 connector pin changes — a job that can be completed in as little as one day. You get a dramatically more capable display with integrated GPS, radio, and audio panel without ripping your panel apart.
If you’ve been considering adding a GPS navigator or upgrading your audio panel, the AXIS upgrade may cost less than buying those components separately — and you get a modern integrated system instead of more discrete boxes.
Compatible Aircraft
AXIS is STC-approved for hundreds of Part 23 Class I and Class II certified piston aircraft. We install on all of them.
Cessna Piston Singles
172 Skyhawk, 182 Skylane, 206 Stationair, 210 Centurion, and more. The most popular piston singles in the fleet — and we’ve installed Garmin in dozens of them.
Piper
Cherokee, Archer, Arrow, Saratoga, Comanche, Seneca, Seminole, Navajo, and Malibu/Mirage piston variants. Single and twin engine platforms covered.
Beechcraft
Bonanza (33/35/36 series), Baron (55/58), Musketeer, Sundowner, Sierra, and Duchess. We know Beechcraft panels and have the STC coverage to match.
Mooney
M20 series including M20C, M20E, M20F, M20J, M20K, M20R Ovation, and M20TN Acclaim. Tight panels are our specialty.
Experimental & LSA
Van’s RV series, Lancair, Glasair, and MOSAIC-eligible LSA aircraft. Experimental installations start at approximately $8,000 for a complete VFR system.
Other Certified Aircraft
Cirrus SR20/SR22 (piston), Grumman/American General, Socata/Daher, Diamond, and more. If it’s Part 23 Class I or II piston, contact us for STC availability.
Why Avionics Works
FAA Certified Repair Station
CRS #1VWR276D. Not a field approval shop — a certificated facility with the authority, tooling, and documentation to do this right.
Proven Garmin Experience
We’ve completed full Garmin glass cockpit conversions from piston singles through Citation jets. AXIS builds on the same Garmin ecosystem we install every day.
Custom Panel Fabrication
In-house CNC panel fabrication and wiring harness manufacturing. We pre-build everything before your aircraft arrives to minimize downtime.
Minimal Downtime
Pre-fabrication means your aircraft spends less time on jacks. G3X Touch upgrades can be completed in as little as one day. New installations typically 1–2 weeks.
Frequently Asked Questions
Ready for Garmin AXIS?
Whether you’re upgrading from G3X Touch or going glass for the first time, we’ll give you a straight answer on cost, timeline, and what makes sense for your aircraft.
